Introduction:

devDuino Sensor Node V3 is a compact Arduino-compatible microcontroller and is designed to build wireless networks based on transceiver . You can easily connect other sensors or actuators to this platform, to build your remote monitoring or controlling system

Features:

• Built on Arduino-compatible architecture
• Clock frequency - 8MHz (may be reduced in order to reduce energy consumption by up to 1MHz)
• Built-in temperature sensor MCP9700 (-40 ° C 125 ° C, accuracy of ± 2 ° C)
• ISP programming interface (recommended)
• Serial programming interface
• Built-in button
• Built-in LED red (showing charge supercapacitors)
• Built-in LED green (user configurable)
• 3 GROVE-compatible connector: I2C, Analog, Digital
• Powered by 0.5W Solar Panel with connector JST 2.0 mm and Super capacitor (from 5 to 12 V)
• Approximate life of 10 years (with the correct code optimization)
• Possible to reduce the size of the board (31.4 x 57.3 mm)
• Dimensions 55 х 70 mm

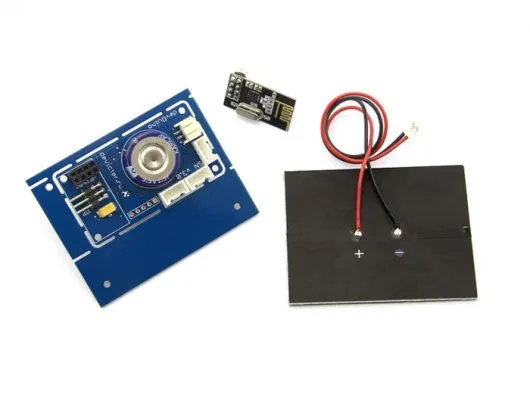

Package List:

• DevDuino Sensor Node V3 – 1 pcs.

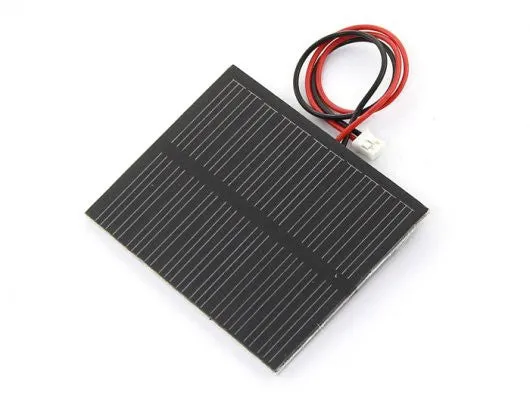

• 0.5W Solar Panel – 1 pcs.

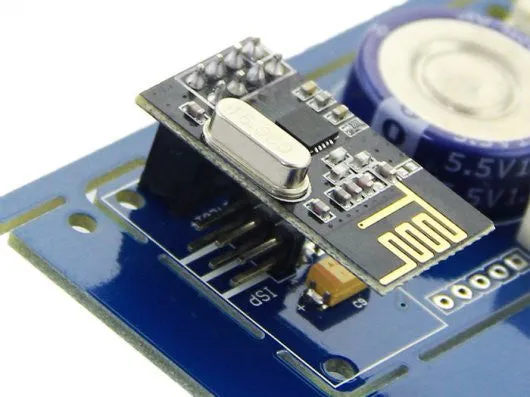

• nRF24L01 Module – 1 pcs.

Documentation

Please visit the  for more information about this product.
