Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | XQ-1469 |
| Connection Type | Miniature Plug |
| Insulation Color | Green/White |
| Insulation Material | Teflon |
| Jacket Color | Green |
| Length, Wire | 3.3 ft (1m) |
| Maximum Operating Temperature | 212 F (100 C) |
| Minimum Operating Temperature | -58 F (-50 C) |
| Shop By | Factory Choice |
| Thermocouple Type | Type K |
| UPC Code | 5056279027458 |
| Wire Size | 1/0.3 (0.078mm2) |
Overview

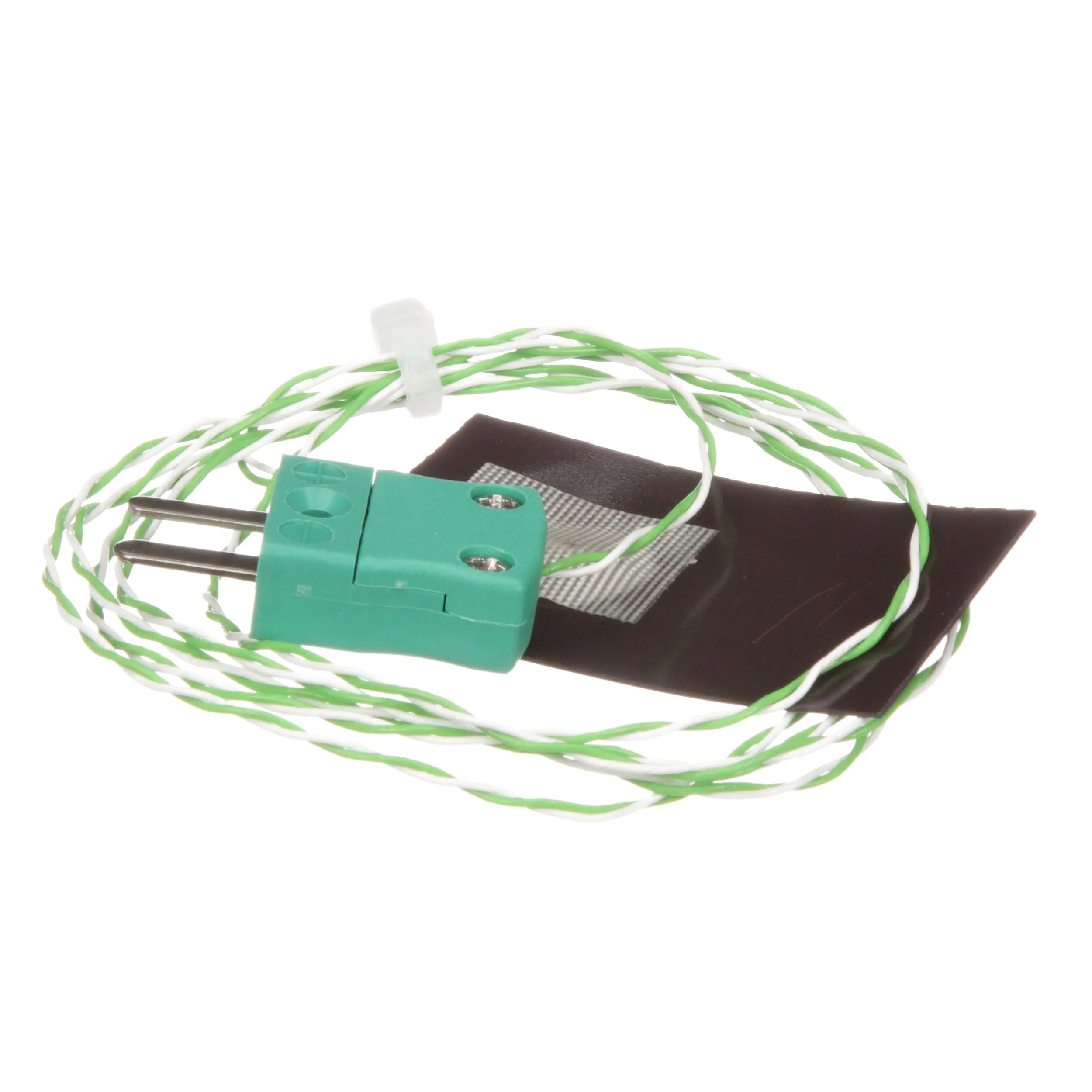

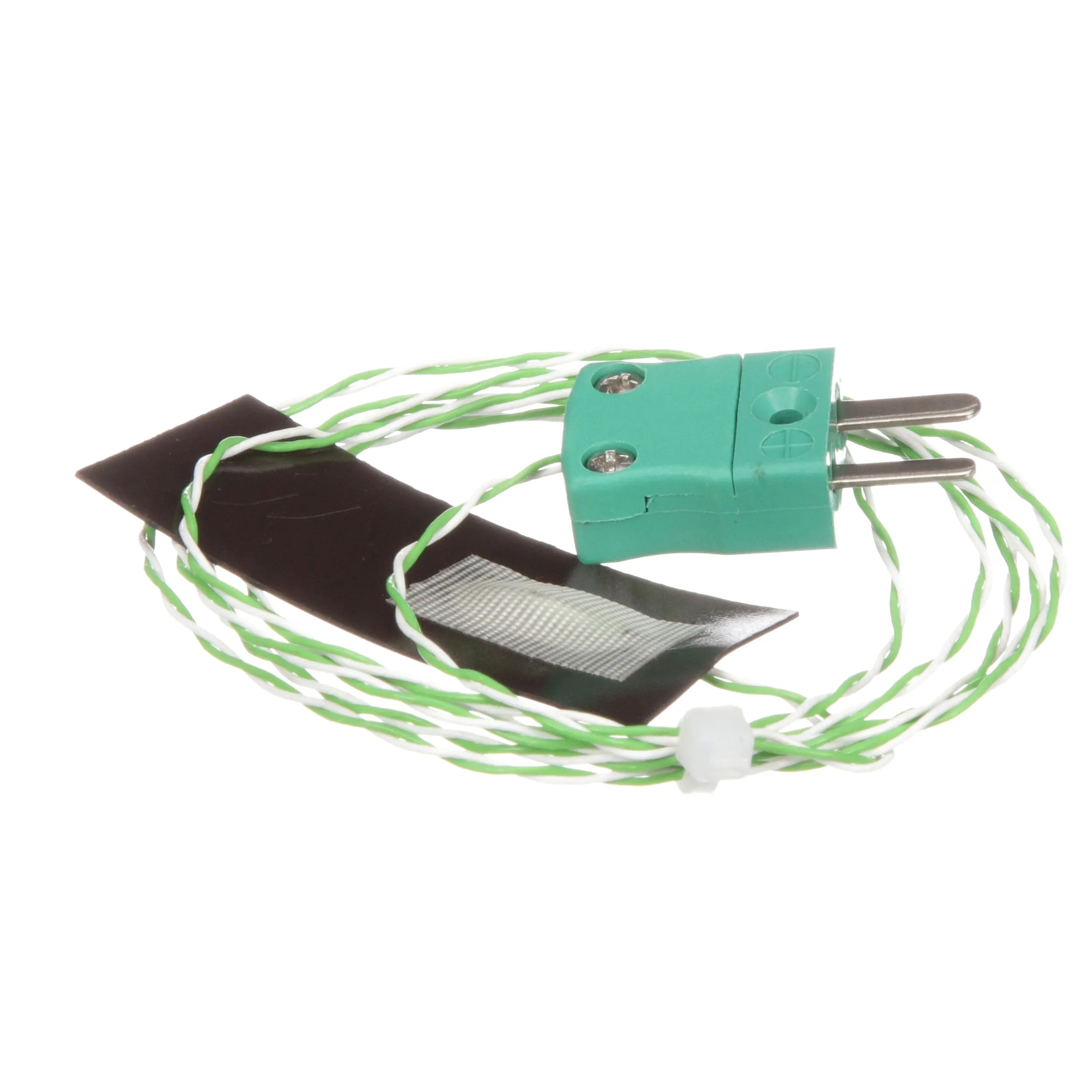

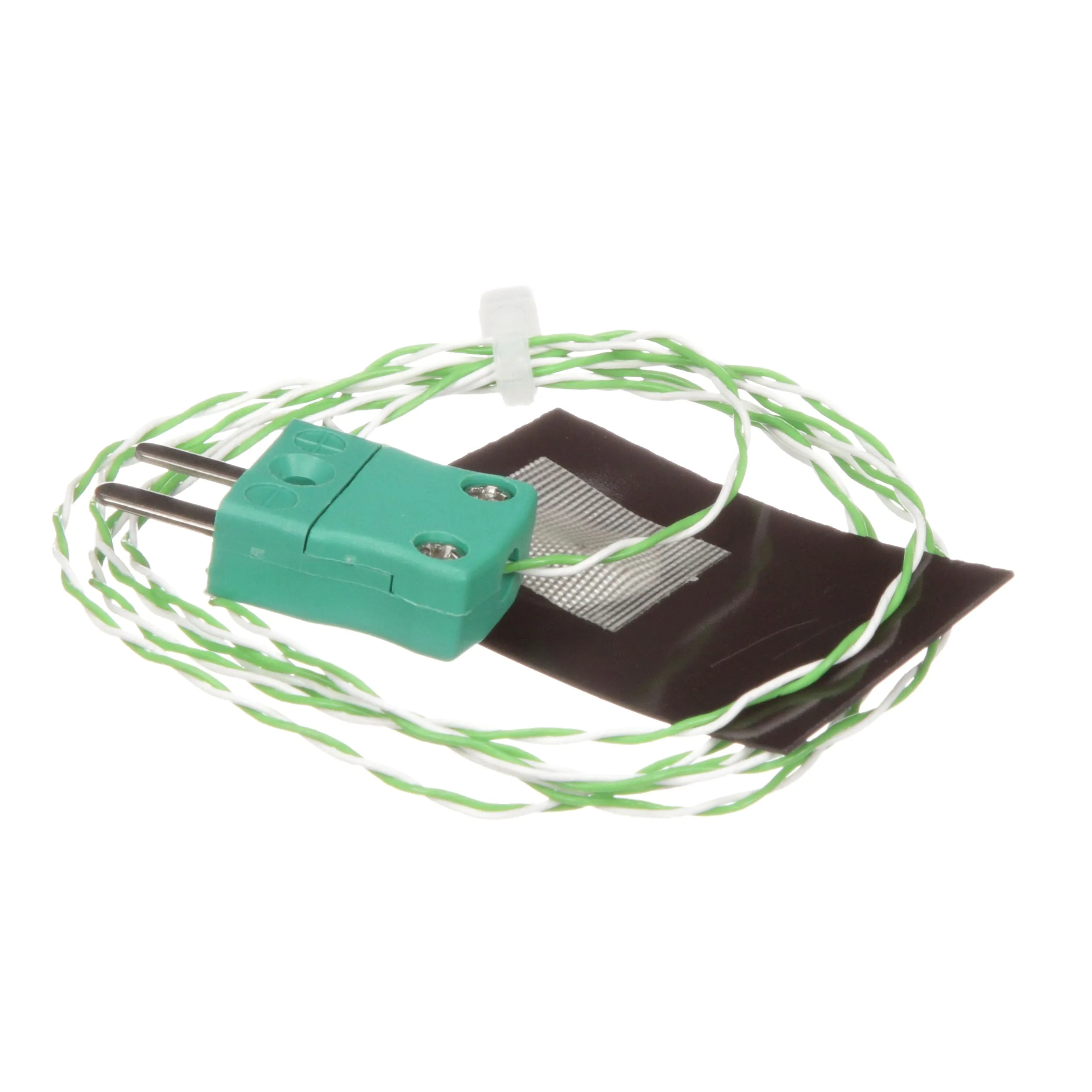

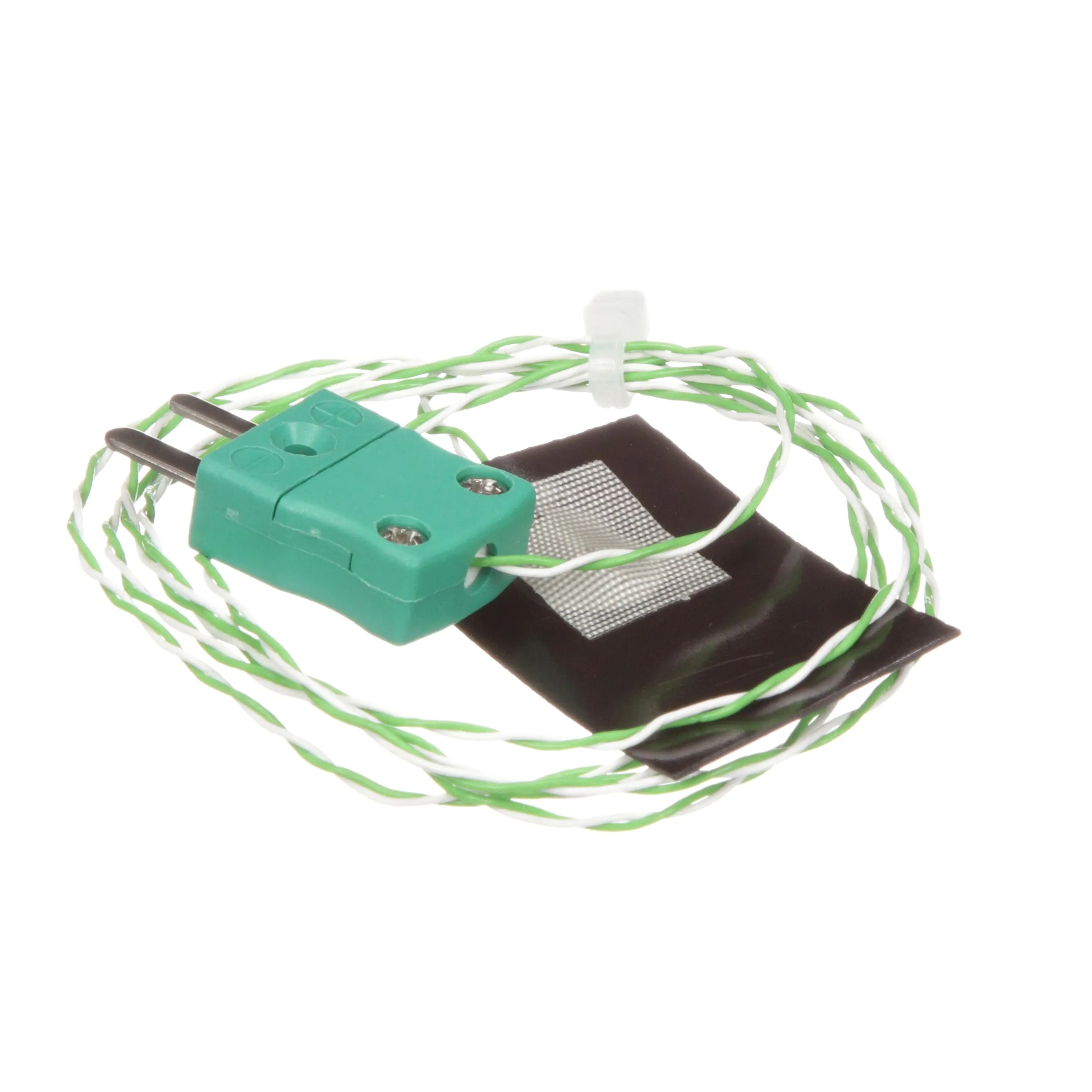

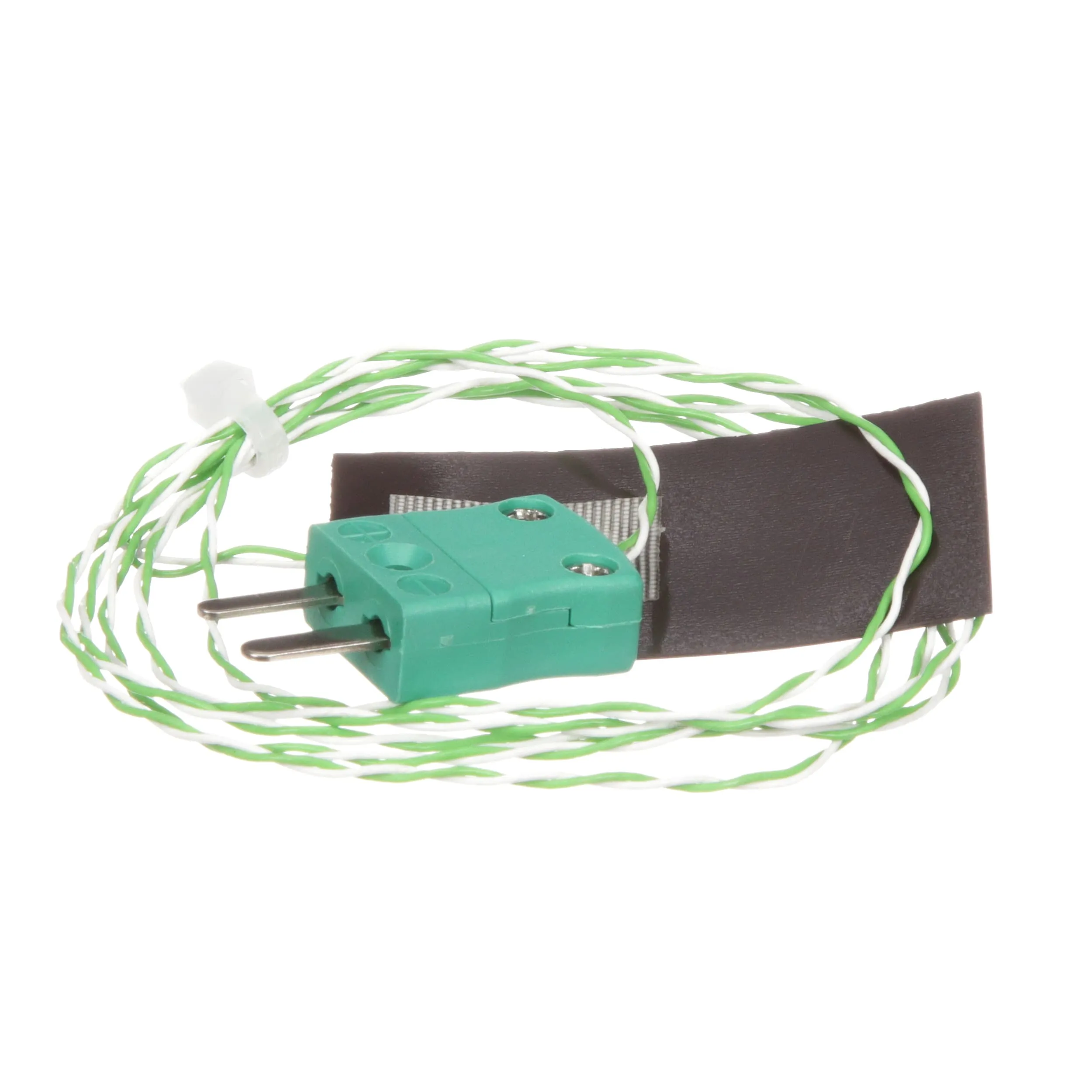

Magnetic Strip Thermocouple (Type K)
A flexible magnetic strip thermocouple capable of being attached to any ferro-magnetic surface. The large area of the magnet ensures good adhesion enabling installation of a thermocouple to be easily and quickly achieved. This device is useful in all temperature monitoring applications especially during test and development. The PTFE covered twisted pair lead is terminated with a miniature plug compatible with thermocouple connectors (type K) and hand-held digital thermometers.
Magnetic strip 50 x 25 x 1 mm
1 or 2 metre Teflon insulated twisted pair lead
Fitted miniature flat pin plug
Colour code to IEC 584-3
Temperature range: -50 to 100°C
