Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | RVM-008GM060 |
| Connection Type | 1/4 BSP |
| Current Rating | 1 A |
| IP Rating | IP65 |
| Material | Brass |
| Maximum Operating Temperature | 120 °C |
| Maximum Pressure Measured | 250 |
| Operating Temperature, Maximum | 120 °C |
| Shop By | Factory Choice |
| Temperature Operating Range | Maximum of 120 °C |
| Type | Sensor/Switch with Indicator |
| UPC Code | 5056112025252 |
Overview

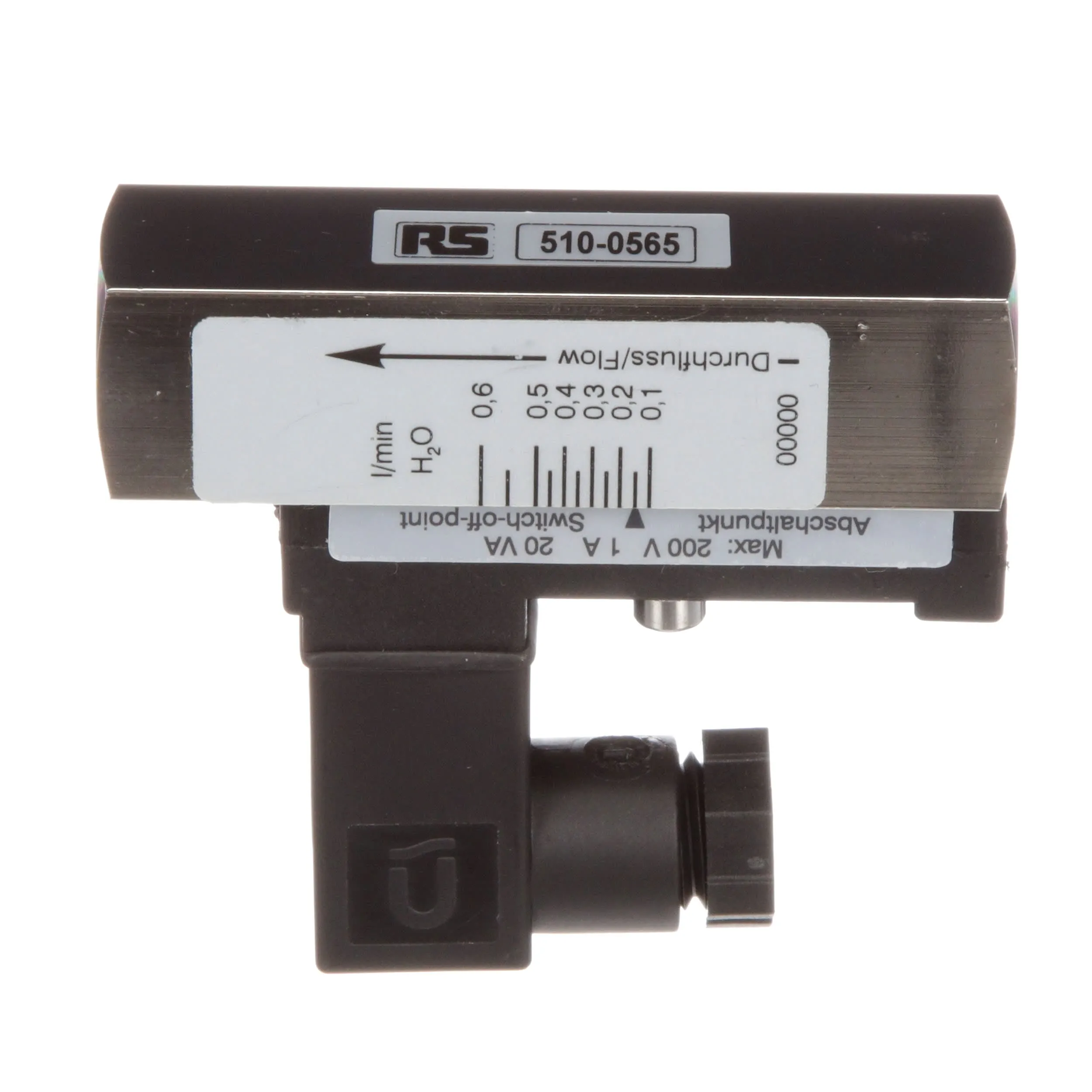

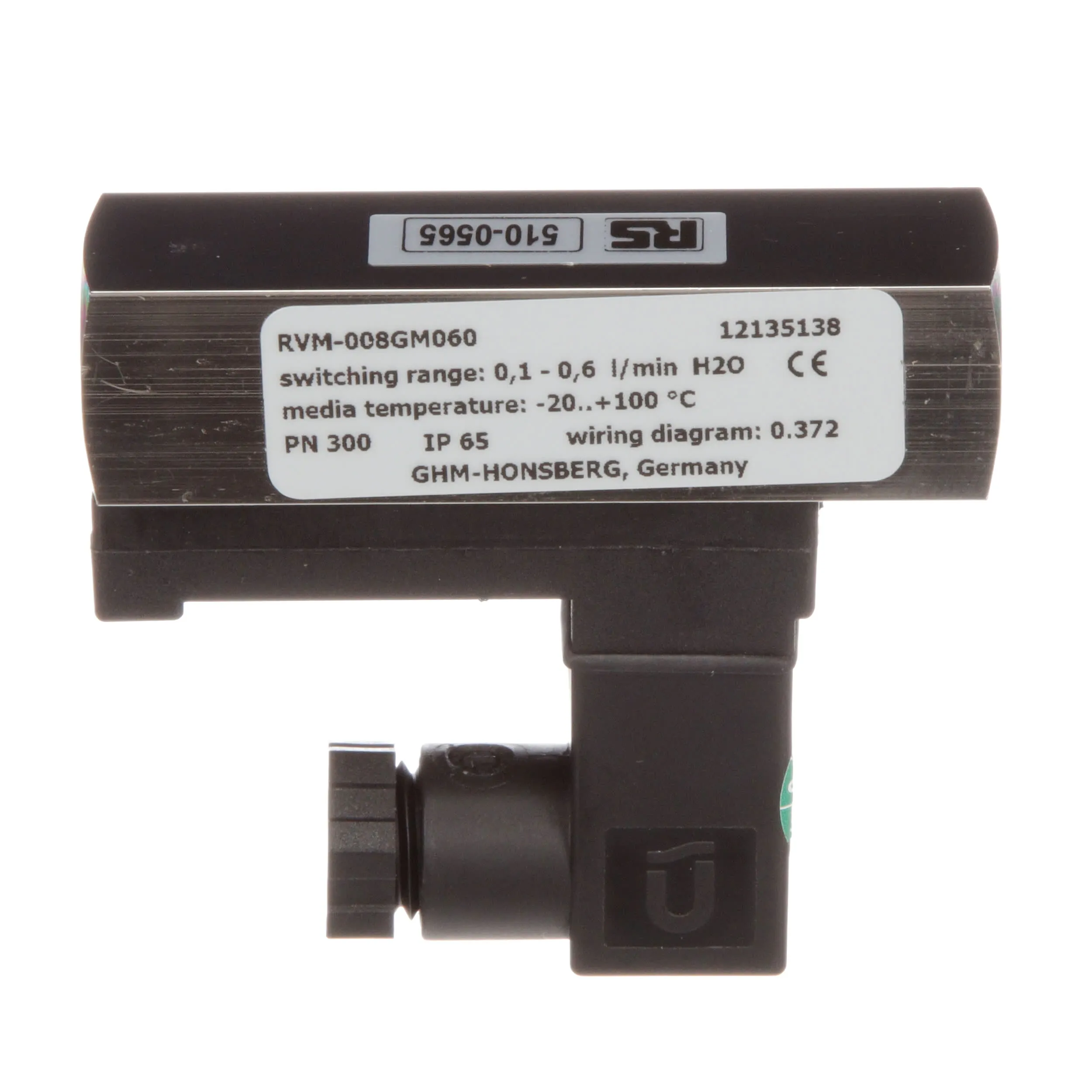

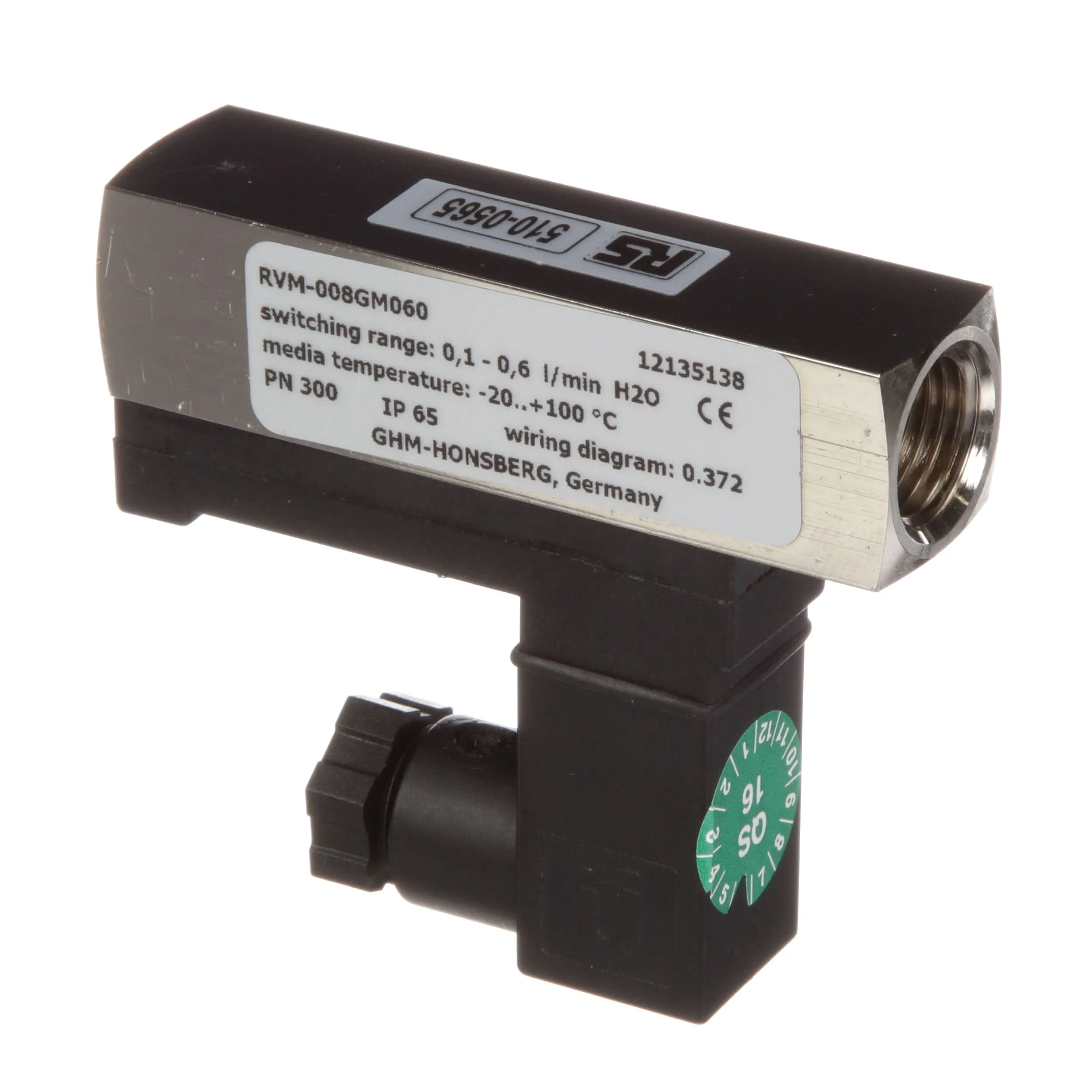

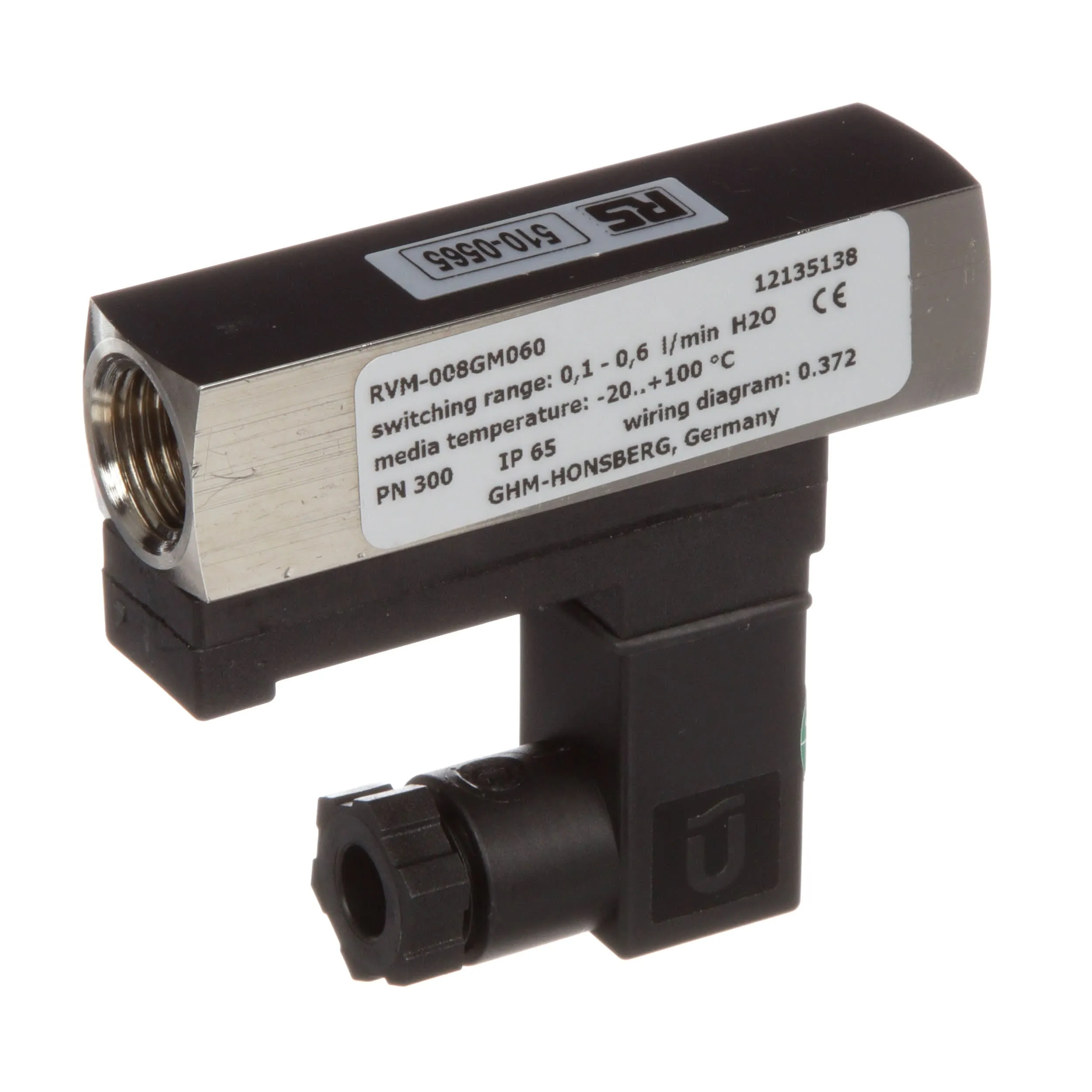

Piston Flow Switch
Monitoring of low flow rates of liquids. A piston equipped with a magnet is displaced by the flow, this action is proportional to the flow rate against a supporting spring. A reed switch on the outside is positioned at the desired point within the control range. A signal is generated when the actual flow rate value is above or below the set value.
