Overview

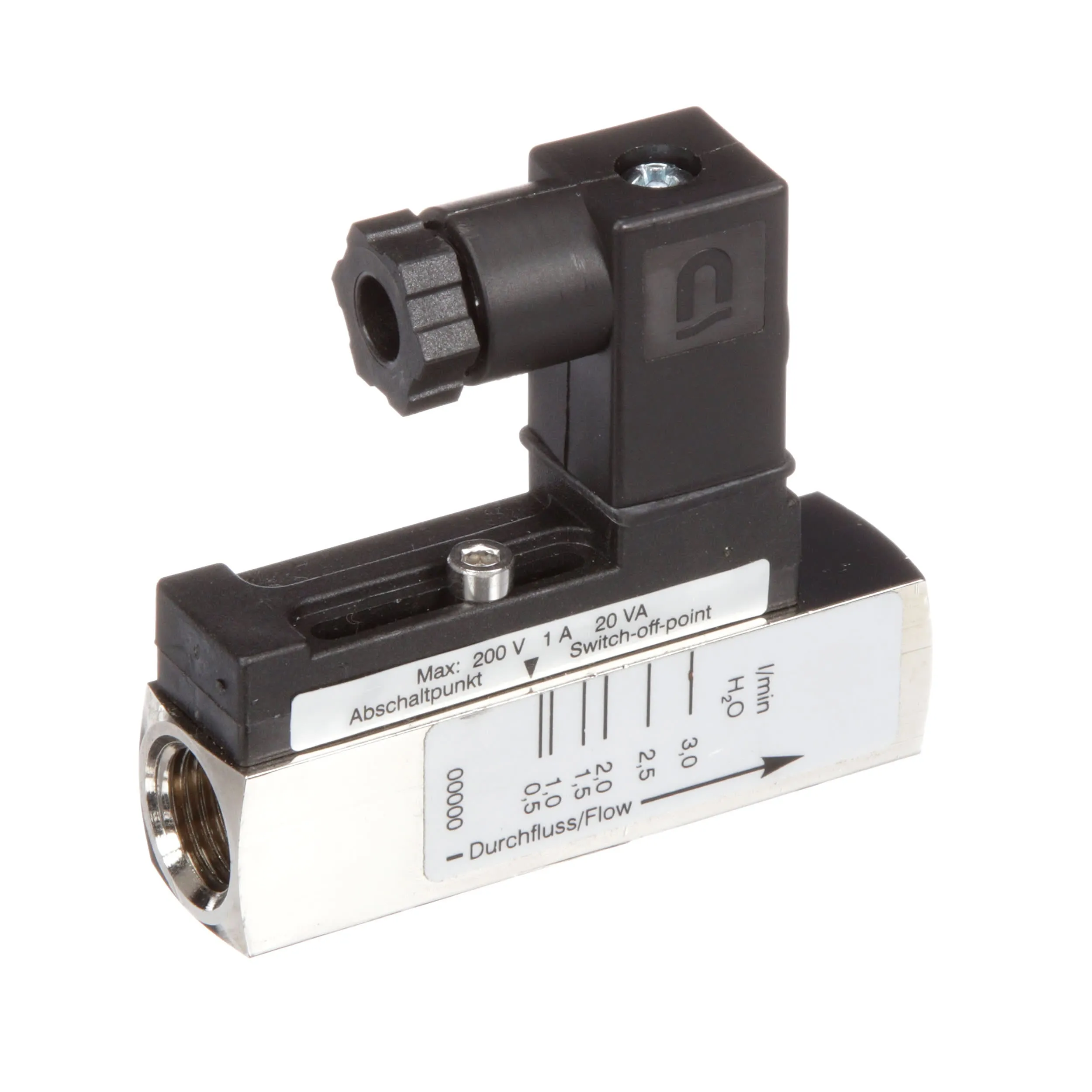

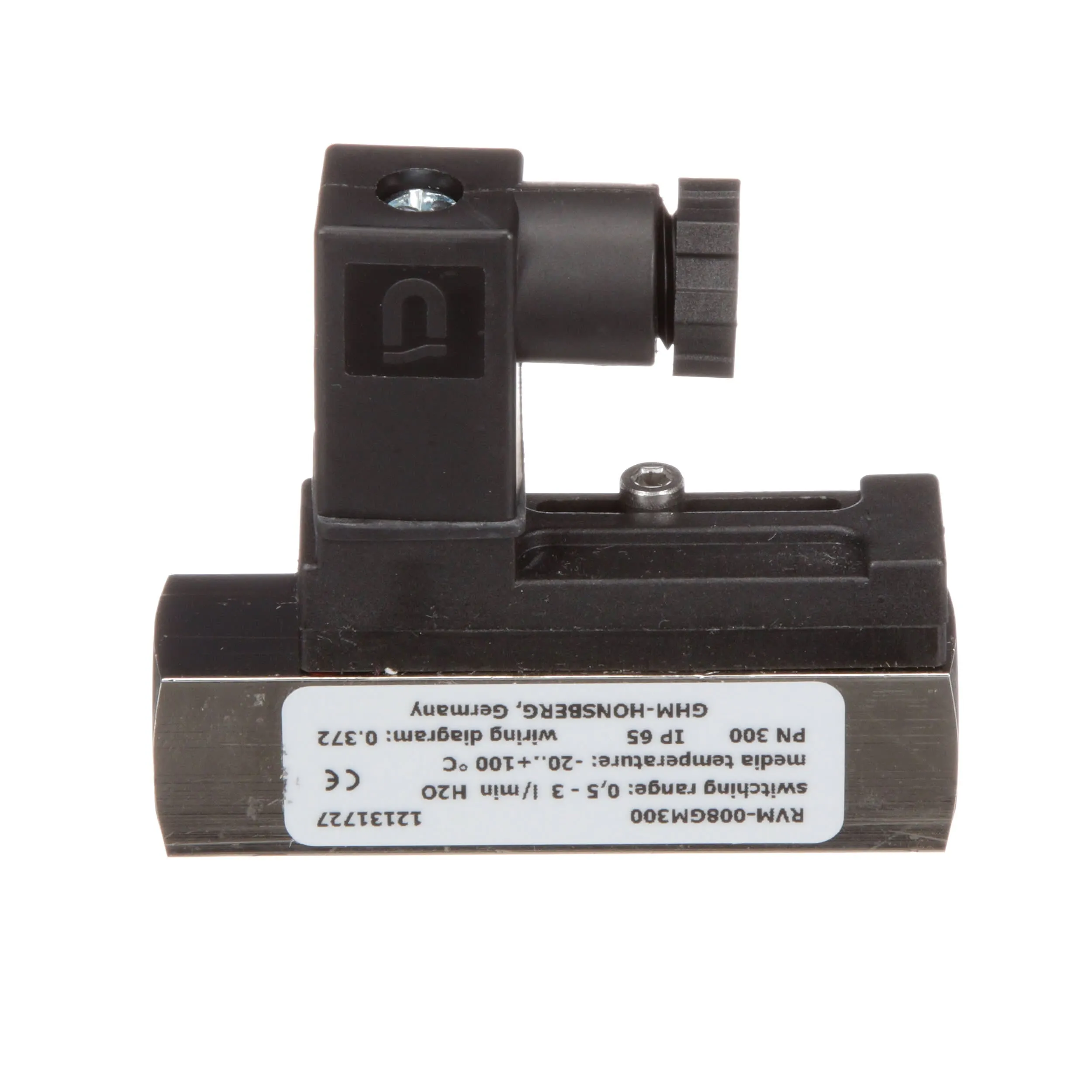

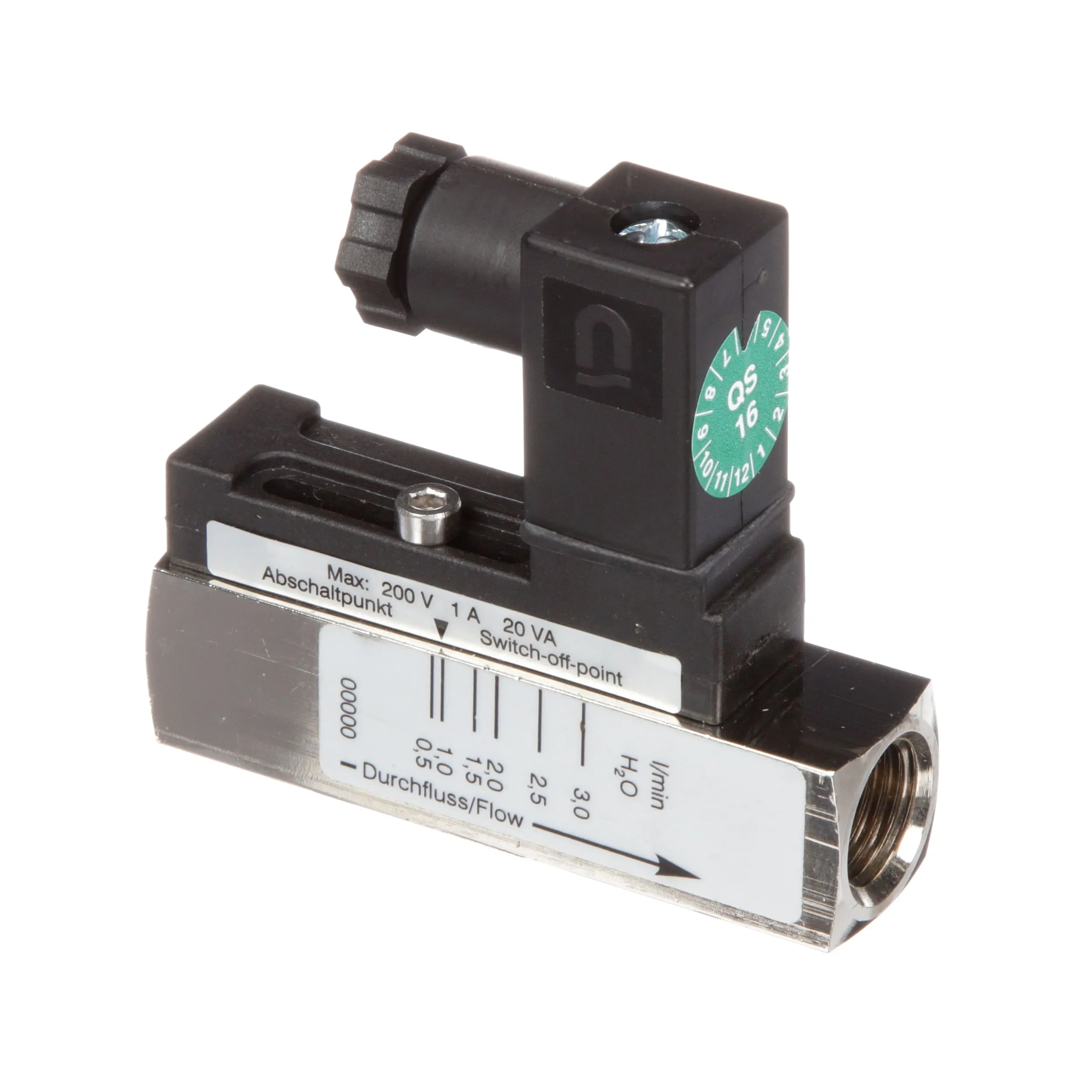

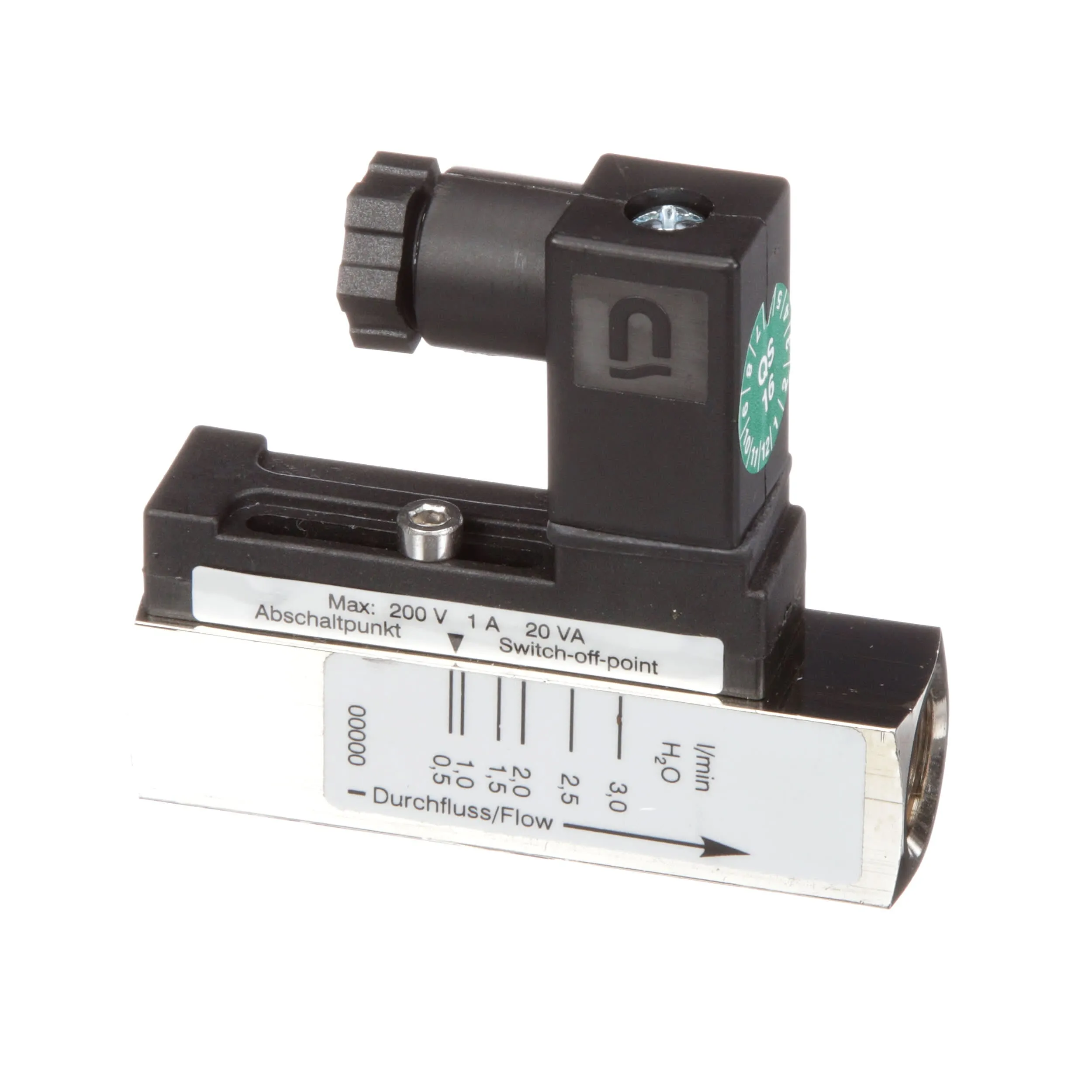

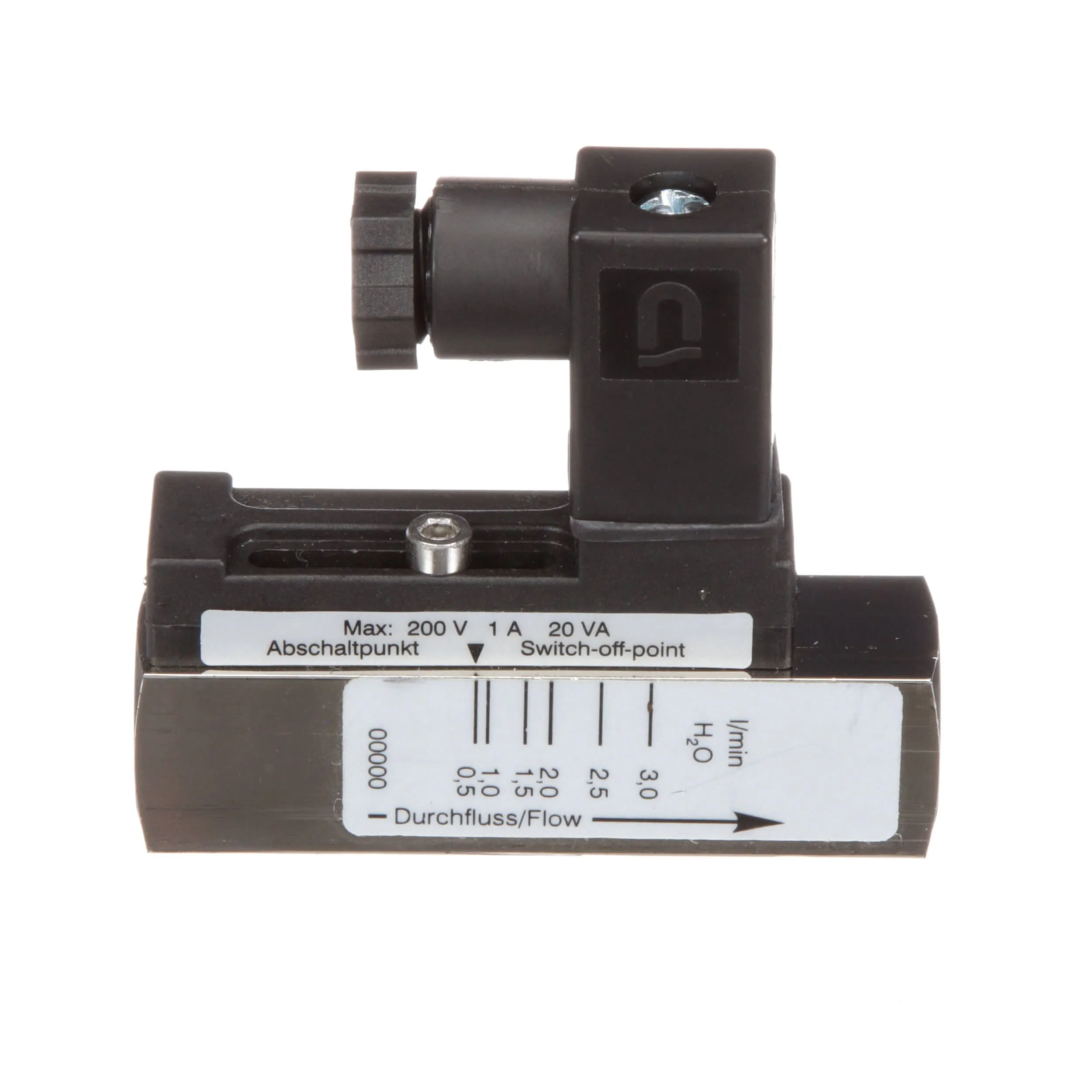

Piston Flow Switch
Monitoring of low flow rates of liquids. A piston equipped with a magnet is displaced by the flow, this action is proportional to the flow rate against a supporting spring. A reed switch on the outside is positioned at the desired point within the control range. A signal is generated when the actual flow rate value is above or below the set value.

High pressure and temperature capabilities
Scaled switch point setting
Low flow switching capabilities
Installation independent of position
Material Brass
